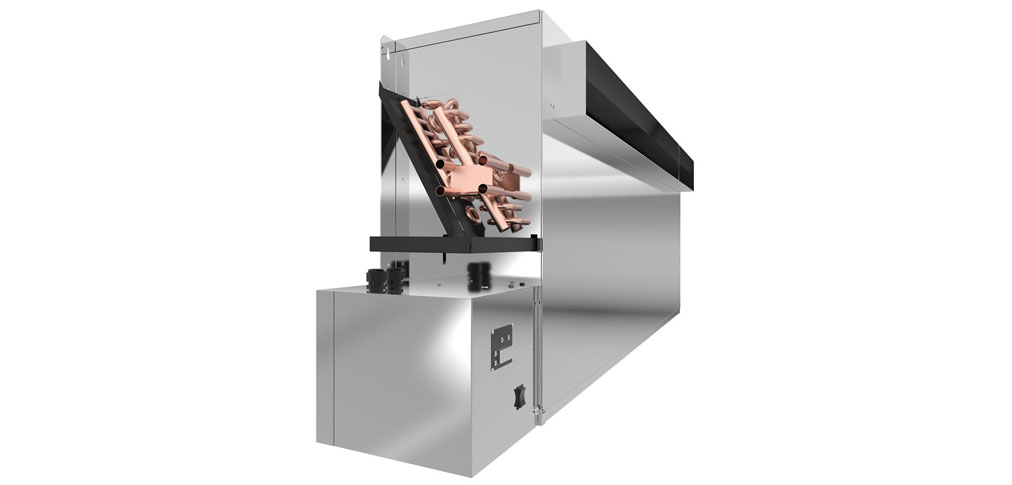

ECO 255 Vertical Fan Coil Unit
The ECO 255 V was developed to fulfil the requirement for wall-mounted, unexposed fan coils – primarily for residential and commercial construction projects.
Continuously delivering great performance while maintaining low noise and SFP levels, our small design continues to accomplish this. The modular design allows for greater flexibility on the site, which helps to decrease handing concerns, and the control module helps to reduce the amount of time needed for commissioning.

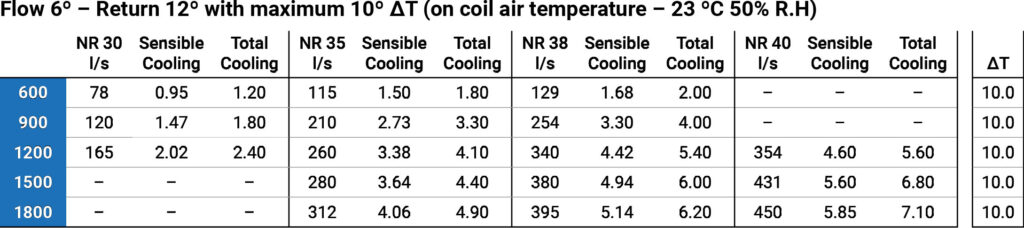

Performance
Features
• Pressure independent
• 5 sizes available
• Low noise levels NR25
• Low SFP levels
• VAV control available
• New coil design
• Handing can be easily changed on-site
• Control module to assist with commissioning
• Manual-set or BMS control
Tech Specs
Casings are rectangular in form, manufactured from 0.8mm thick folded and riveted Galvanised Mild Steel sheet formed into rectangular panels.
The front panel is easily demountable to facilitate access to all internal components
Outlet spigots are manufactured from welded Galvanised Mild Steel sheet formed into an open-ended rectangular shape and are continuously mechanically fixed and sealed to the fan coil unit casing. Top or front outlet available
Each fan coil unit is equipped with key-hole mounting points incorporated in the back panel to facilitate installation.

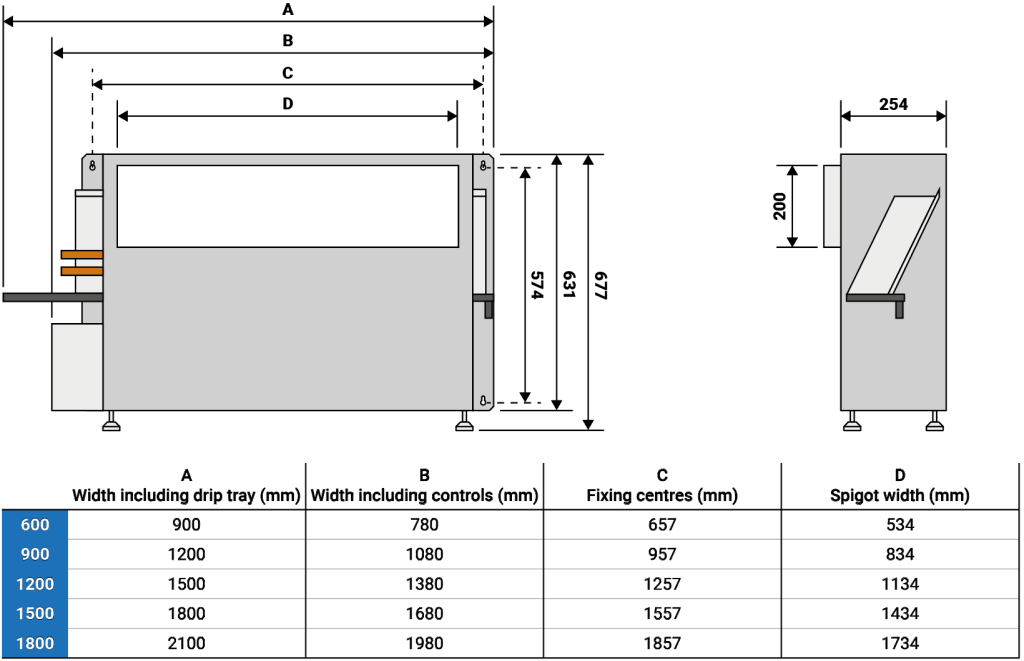

Dimensions
